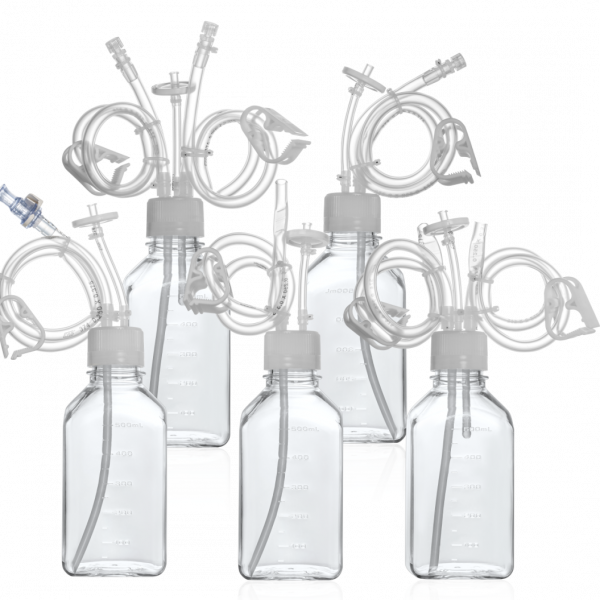

BOENMED® Media Bottle Assembly Systems
Boenmed manufacturer of closed system for square media bottle. Media bottle assembly systems are available in a range of sizes from 250mL to 2L. The closed-system design includes a PETG Square Media Bottle, two port closure assembly (TPE resin and 18” tubing plugged end) with a 0.2 μm vent filter, notched dip tube, and a polyethylene cap. The system is engineered to ensure an unobstructed fluid path, extremely low levels of extractables, and a secure elastomeric seal between closure and bottle. Economically designed for the single-use market, these systems are easily used with sterile connecting devices and thermal tubing sealers. They are sold double-bagged and gamma irradiated to achieve a Sterility Assurance Level (SAL) of 10-6 per ANSI/AAMI/ISO 11137. Customized designs, sizes, packaging, and other options are available upon request.
Specifications of matching square media bottle: 250mL, 500mL, 1000mL, 2000ml
Type of tube connector：Male MPC, FLL, thermalseal tube
Type of tube：2 way, 3 way
Material：Bottle body (PETG)，Bottle cap (HDPE)，Inner tube (PTFE)，Outer tube(TPE)，FLLconnector (PP)/Male MPC connector(PC), Filter housing (PP) Filter membrane(PTFE）
conforming to USP Class VI standards
Feature:
Designed for single-use
Unobstructed fluid path
Extremely low levels of extractables
Works with sterile connecting devices and thermal tubing sealers
Available in sizes from 250mL to 2L
Sterility Assurance Level (SAL) of 10-6 per ANSI/AAMI/ISO 11137
System delivered double-bagged
| Cat. No. | Description | Tube spec. | Filter |
| 624201 | 250ml Media bottle assembly systems | 2way, 60cm, 1/4" ID, 3/8" OD, FLL connector | 0.22μm,PTFE,φ30mm |
| 624202 | 250ml Media bottle assembly systems | 2way, 60cm, 1/4" ID, 3/8" OD, thermalseal tube connector | 0.22μm,PTFE,φ30mm |
| 624203 | 250ml Media bottle assembly systems | 2way, 60cm, 1/4" ID, 3/8" OD, Male MPC connector | 0.22μm,PTFE,φ30mm |
| 624204 | 250mlMedia bottle assembly systems | 3way, 60cm, 1/4" ID, 3/8" OD, FLL connector | 0.22μm,PTFE,φ30mm |
| 624205 | 250ml Media bottle assembly systems | 3way, 60cm, 1/4" ID, 3/8" OD, thermalseal tube connector | 0.22μm,PTFE,φ30mm |
| 624206 | 500ml Media bottle assembly systems | 2way, 60cm, 1/4" ID, 3/8" OD, FLL connector | 0.22μm,PTFE,φ30mm |
| 624207 | 500mlMedia bottle assembly systems | 2way, 60cm, 1/4" ID, 3/8" OD, thermalseal tube connector | 0.22μm,PTFE,φ30mm |
| 624208 | 500ml Media bottle assembly systems | 2way, 60cm, 1/4" ID, 3/8" OD, Male MPC connector | 0.22μm,PTFE,φ30mm |
| 624209 | 500ml Media bottle assembly systems | 3way, 60cm, 1/4" ID, 3/8" OD, FLL connector | 0.22μm,PTFE,φ30mm |
| 624210 | 500ml Media bottle assembly systems | 3way, 60cm, 1/4" ID, 3/8" OD, thermalseal tube connector | 0.22μm,PTFE,φ30mm |
| 624211 | 1000ml Media bottle assembly systems | 2way, 60cm, 1/4" ID, 3/8" OD, FLL connector | 0.22μm,PTFE,φ30mm |
| 624212 | 1000ml Media bottle assembly systems | 2way, 60cm, 1/4" ID, 3/8" OD, thermalseal tube connector | 0.22μm,PTFE,φ30mm |
| 624213 | 1000ml Media bottle assembly systems | 2way, 60cm, 1/4" ID, 3/8" OD, Male MPC connector | 0.22μm,PTFE,φ30mm |
| 624214 | 1000ml Media bottle assembly systems | 3way, 60cm, 1/4" ID, 3/8" OD, FLL connector | 0.22μm,PTFE,φ30mm |
| 624215 | 1000ml Media bottle assembly systems | 3way, 60cm, 1/4" ID, 3/8" OD, thermalseal tube connector | 0.22μm,PTFE,φ30mm |
| 624216 | 2000ml Media bottle assembly systems | 2way, 60cm, 1/4" ID, 3/8" OD, FLL connector | 0.22μm,PTFE,φ30mm |
| 624217 | 2000mlMedia bottle assembly systems | 2way, 60cm, 1/4" ID, 3/8" OD, thermalseal tube connector | 0.22μm,PTFE,φ30mm |
| 624218 | 2000ml Media bottle assembly systems | 2way, 60cm, 1/4" ID, 3/8" OD, Male MPC connector | 0.22μm,PTFE,φ30mm |
| 624219 | 2000ml Media bottle assembly systems | 2way, 60cm, 1/4" ID, 7/16" OD, thermalseal tube connector | 0.22μm,PTFE,φ30mm |
